Electric vertical takeoff and landing composite wing unmanned aerial vehicle, commonly known as eVTOL Fixed Wing Hybrid or VTOL Composite Wing unmanned aerial vehicle, is an advanced flight platform that combines the advantages of both multi rotor unmanned aerial vehicles and fixed wing unmanned aerial vehicles.

　　Electric: means it is powered by batteries, clean, quiet, and easy to maintain.

　　Vertical takeoff and landing: This means it can take off and land vertically like a multi rotor drone without relying on a runway, with extremely low requirements for takeoff and landing sites.

　　Composite wing: This is the key. It is not simply a combination of rotors and fixed wings, but rather a sophisticated design that uses vertical lift systems (such as rotors) during takeoff and landing, and relies mainly on the aerodynamic lift of fixed wings for efficient cruising during level flight.

　　Application scenarios

　　1. Surveying and mapping:

　　Conduct large-scale terrain mapping, earthwork surveying, and 3D urban modeling. Long endurance and high speed enable it to quickly complete large-scale operations.

　　2. Power and pipeline inspection:

　　Automated inspection of long-distance transmission lines and oil/gas pipelines. Vertical takeoff and landing facilitate hovering inspection at specific towers or nodes.

　　3. Logistics transportation:

　　It is one of the ideal platforms for air logistics, used for the distribution of emergency medical supplies over medium to long distances and the transportation of goods between mountainous areas or islands.

　　4. Security and surveillance:

　　Used for wide area monitoring of border patrols, large industrial parks, and emergency command sites, providing a long-term aerial perspective.

　　5. Agriculture and Environmental Protection:

　　Conduct large-scale agricultural and forestry surveys, monitor pests and diseases, track wildlife, and monitor the environment.

　　6. Military and Defense:

　　Used for tasks such as tactical reconnaissance, intelligence gathering, communication relay, and area denial.

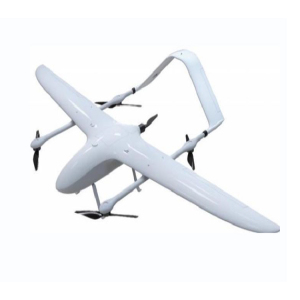

　　VF-13E Electric Vertical Takeoff and Landing (eVTOL) Fixed-Wing UAV: A Comprehensive Guide to Operation, Support, and Warranty

　　The VF-13E stands as a pinnacle of modern unmanned aerial technology, expertly merging the vertical takeoff and landing flexibility of a multirotor with the long-range efficiency of a fixed-wing aircraft. To ensure you maximize the return on your investment and achieve unparalleled operational success, a deep understanding of its operation, maintenance, and the robust support behind it is crucial. This guide provides an in-depth look at the VF-13E's operational procedures, comprehensive warranty policy, meticulous maintenance requirements, and the dedicated after-sales support system designed for our global B2B clients.

　　Operational Manual: Precision and Safety from Takeoff to Landing

　　Adhering to these standardized operating procedures is fundamental to ensuring the safety, longevity, and optimal performance of your VF-13E.

　　Pre-Flight Checklist: The Foundation of a Successful Mission

　　A thorough pre-flight inspection is mandatory before every single operation. Neglecting this step can lead to equipment failure and mission compromise.

　　Site Assessment and Weather Check:

　　Select a clear, open area with a minimum radius of 15 meters free from obstacles such as buildings, trees, and power lines.

　　Verify local weather conditions. Do not operate in precipitation, winds exceeding 10 m/s, or when visibility is poor.

　　Ensure compliance with all local aviation regulations and airspace restrictions.

　　Equipment Inspection:

　　Airframe: Conduct a visual and physical inspection of the entire structure. Check the wings, fuselage, and VTOL arms for any cracks, fractures, or deep scratches. Pay close attention to the joints and hinges.

　　Propulsion System: Examine all propellers for nicks, cracks, or signs of imbalance. Ensure they are securely fastened. Manually rotate each motor to feel for any bearing roughness or obstruction.

　　Power System: Insert a fully charged battery, ensuring the connector is fully seated and secure. Inspect the battery for any physical damage, swelling, or leakage.

　　Sensors and Avionics: Check that the GPS/Compass module is clean, secure, and unobstructed.

　　Payload: Verify that the camera or sensor is securely mounted and that all data/power connections are proper.

　　Ground Control Station (GCS) and Communication Setup:

　　Power on the remote controller and ground control station (tablet/laptop).

　　Launch the flight control application and establish a stable connection with the VF-13E.

　　Wait for the system to acquire a strong GPS signal (typically more than 10 satellites). The application will provide a clear indication when the aircraft is "Ready for Takeoff."

　　Verify that all telemetry data, including battery voltage, satellite count, and signal strength, are displaying normal values.

　　In-Flight Procedures: Automated and Manual Control

　　The VF-13E is designed for both simplicity and advanced control, catering to pilots of all experience levels.

　　Automatic Vertical Takeoff:

　　In the GCS interface, select the "Automatic Takeoff" command.

　　The system will prompt for a final confirmation. The pilot must typically hold a designated safety switch on the remote controller while confirming.

　　The VF-13E will autonomously start its motors, ascend vertically to a pre-set safe altitude (e.g., 20 meters), and enter a stable hover.

　　Seamless Flight Mode Transition:

　　Once stable in hover, the transition to fixed-wing flight is initiated via a single command in the GCS.

　　The aircraft will automatically pitch forward, using its VTOL motors to gain airspeed. As the wings generate sufficient lift, the VTOL motors will power down and their propellers will fold to minimize drag, while the rear pusher propeller provides efficient forward thrust.

　　This entire process is fully automated and managed by the redundant flight controller.

　　Mission Execution:

　　The aircraft can now be flown manually via the remote controller or, more commonly, can follow a pre-programmed autonomous flight plan uploaded to the GCS. Autonomous flight is highly recommended for precision tasks like aerial mapping, linear infrastructure inspection, and agricultural surveying.

　　Return to Launch (RTL) and Automatic Landing:

　　To conclude the mission, initiate the "Return to Launch" command from the GCS or a dedicated button on the remote controller.

　　The VF-13E will automatically navigate back to the home point recorded at takeoff.

　　Upon arrival, it will decelerate, transition back to multirotor mode, and perform a vertical descent for a soft, precise landing.

　　Post-Flight Protocol: Securing Your Asset

　　Sequential Power Down: After the motors have disarmed, first power off the VF-13E airframe, then the remote controller, and finally the GCS.

　　Data Retrieval: Safely remove the payload and download the acquired data for processing.

　　Battery Management: Remove the battery from the aircraft. If the battery will not be reused within 24 hours, it should be discharged or charged to its recommended storage voltage (approximately 3.8V per cell) to preserve its health.

　　Physical Inspection and Cleaning: Perform a brief post-flight inspection for any new wear or damage. Gently clean the airframe with a soft, dry cloth to remove dust, moisture, and debris.

　　Comprehensive Warranty Policy

　　We stand behind the quality and durability of the VF-13E with a transparent and comprehensive warranty policy.

　　Standard Warranty Coverage

　　The VF-13E UAV is covered by a standard 12-month limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and in accordance with the provided operational guidelines. Covered components include the main airframe structure, factory-installed motors, electronic speed controllers (ESCs), and the flight controller.

　　Warranty Limitations and Exclusions

　　The warranty does not cover damage resulting from:

　　Accidents, misuse, abuse, neglect, or improper maintenance.

　　Modifications or repairs performed by personnel not authorized by our company.

　　Crash incidents, regardless of the cause (pilot error, system failure verified by flight log analysis excluded).

　　Water immersion, corrosion, or operation in extreme environments outside specified limits.

　　Normal wear and tear, including minor scratches on the airframe and consumable parts like propellers.

　　Batteries, which are covered by a separate 6-month warranty against manufacturing defects.

　　Warranty Service Process

　　To initiate a warranty claim, please follow these steps:

　　Contact Support: Reach out to our technical support team via the support portal or email with your VF-13E's serial number and a detailed description of the issue.

　　Preliminary Diagnostics: Our engineers will guide you through preliminary troubleshooting and may request flight log data for analysis.

　　RMA Issuance: If a return is necessary, we will issue a Return Material Authorization (RMA) number. All returned units must have this RMA number clearly marked on the outside of the packaging.

　　Evaluation and Resolution: Upon receipt at our designated service center, our technicians will conduct a full evaluation. We will communicate the findings and the resolution, which may involve repair or replacement, promptly.

　　Essential Maintenance Requirements

　　Proactive and scheduled maintenance is the key to ensuring the long-term reliability and safety of your VF-13E.

　　Routine Maintenance Schedule

　　Before Every Flight (Pre-Flight Inspection): As detailed in the operational manual, this is the most critical maintenance activity.

　　After Every 50 Flight Hours or 3 Months:

　　Perform a detailed inspection of all moving parts, including servo connectors and motor bearings.

　　Check the tightness of all critical fasteners and screws.

　　Clean electrical connectors with contact cleaner to ensure optimal conductivity.

　　Update the aircraft and GCS software to the latest versions.

　　After Every 200 Flight Hours or 12 Months:

　　This is a major service interval. We strongly recommend sending the VF-13E to an authorized service center for a comprehensive inspection.

　　This service includes a full vibration analysis, motor balancing, deep calibration of all sensors (IMU, Compass), and a thorough stress test of the entire avionics and propulsion system.

　　Battery Care and Handling

　　Lithium polymer batteries require careful handling for safety and performance.

　　Charging: Always use the provided or approved smart charger. Never leave batteries charging unattended. Charge in a fire-proof area.

　　Storage: As mentioned, store batteries at a storage voltage (approx. 3.8V per cell). Store in a cool, dry place, away from flammable materials, ideally in a fire-proof bag or container.

　　Lifespan Monitoring: Regularly check battery health through the GCS, which can report internal resistance and cell balance. Retire batteries that show significant swelling, voltage sag, or high internal resistance.

　　Long-Term Storage Guidelines

　　For storage periods exceeding one month:

　　Thoroughly clean and dry the entire UAV.

　　Charge all batteries to storage voltage and remove them from the airframe.

　　Store the UAV and its components in the original, or equivalent, hard-case in a cool, dry environment with a stable temperature.

　　Dedicated After-Sales Support System

　　Our partnership with you extends far beyond the point of sale. We provide a multi-channel support ecosystem to ensure your operational continuity.

　　Global Technical Support Channels

　　Email Support: For detailed technical inquiries and documentation requests. We aim to respond within one business day.

　　Online Support Portal & Ticket System: This is the primary channel for support. It offers a knowledge base, software downloads, and a ticketing system to track the status of your requests.

　　Video Conferencing: For complex issues, we can arrange real-time video sessions with our senior engineers for visual diagnostics and guidance.

　　Spare Parts and Repair Services

　　We maintain a global inventory of genuine VF-13E spare parts and accessories, including propellers, motors, landing gear, and entire wing sets. Using non-genuine parts will void the product warranty and may compromise safety. We offer expedited shipping for critical components to minimize your downtime.

　　Training and Resources

　　We provide extensive online resources, including:

　　Detailed video tutorials on assembly, operation, and basic troubleshooting.

　　Downloadable PDF manuals and quick-start guides.

　　Webinars on advanced flight planning and data processing techniques.

　　Conclusion: A Partnership for Unmanned Excellence

　　The VF-13E eVTOL Fixed-Wing UAV is a sophisticated tool built for professionals. By following the operational guidelines, adhering to the maintenance schedule, and leveraging our comprehensive warranty and support services, you can ensure that your VF-13E remains a reliable and productive asset for years to come. Our global team is committed to your success, providing the professional support you need to conquer any aerial challenge.
