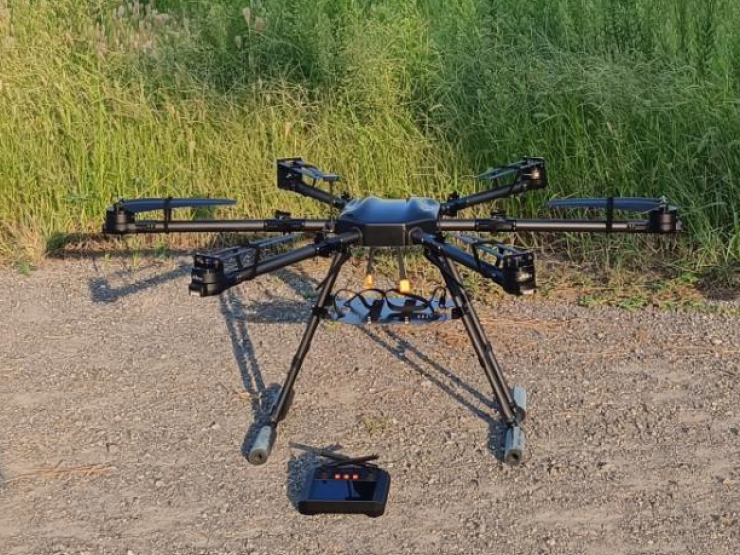

Model: LH06

　　Wheelbase: 1300mm

　　Payload capacity: 10KG

　　Tethered hovering height: 100 meters

　　Wind resistance: Level 6 wind

　　Hanging time: ≥ 12 hours

　　Onboard power supply power: 6KW

　　Municipal power/generator: AC220V

　　Application scenarios: lighting, spraying, communication relay, etc.

　　Working principle of Tethered Drone

　　The Tethered Drone is connected to a ground power source through a cable, enabling long-term aerial hovering and mission execution.

　　The mooring box converts the single-phase 220V (or three-phase 380V) AC power provided by the generator (mains power) into high-voltage DC power DC400-1500V and outputs it to the mooring cable. After being stepped down by the onboard power supply, it is converted into a DC stabilized output suitable for Drone Power Supply (such as 50V for 12S), providing a long endurance power supply mode for the drone.

　　Application areas of Tethered Drone

　　The application of Tethered Drone is very extensive, including but not limited to emergency rescue (emergency lighting, emergency communication, high-rise firefighting), military (intelligence surveillance, electro-optical reconnaissance, radar electronic warfare), public safety (relay self-organizing network, environmental monitoring), and civilian (nighttime power repair, high-rise building cleaning/spraying). These application scenarios require drones to remain in a fixed position for a long time to complete specific tasks.

　　Title: LH06 Tethered Drone: The Definitive Guide to Compact, Persistent Aerial Power

　　Introduction

　　In the dynamic world of unmanned aerial systems, the need for a compact, rapidly deployable, and enduring surveillance solution is paramount. The LH06 Tethered Drone System meets this demand head-on, offering a perfect synergy of portability and persistent flight capability. Designed for missions where space is limited and time is critical, the LH06 provides a reliable aerial platform for a wide range of security, public safety, and inspection tasks. This in-depth guide explores the standout features, core advantages, rigorous performance testing, and essential operational guidelines for the LH06. Engineered for professionals who cannot afford downtime, this system delivers a powerful, steady eye in the sky from a remarkably small footprint.

　　Product Highlights: What Sets the LH06 Apart

　　The LH06 is engineered with a focus on practical, field-ready performance. Its design philosophy centers on providing maximum operational capability with minimal logistical burden.

　　Unmatched Portability and Rapid Deployment

　　The entire LH06 system, including the drone, tether, and ground station, is packaged into a single, transportable case. Weighing significantly less than larger tethered systems, it can be carried by a single operator and set up for flight in a matter of minutes. This makes it the ideal solution for first responders and mobile units who need to establish an aerial vantage point immediately upon arriving at a scene.

　　Integrated, High-Stability Gimbal Camera

　　Unlike modular systems that require payload configuration, the LH06 often comes with a seamlessly integrated high-definition camera housed in a stabilized gimbal. This plug-and-play design eliminates setup complexity. The 3-axis mechanical gimbal ensures buttery-smooth video footage even in gusty conditions, providing clear and identifiable imagery essential for effective intelligence, surveillance, and reconnaissance (ISR).

　　Advanced Tether Power and Data Link

　　At the heart of the system is its micro-diameter tether, which is both lightweight and incredibly strong. This tether delivers continuous power from the ground, enabling flight durations of 6 hours or more, limited only by ground power supply. Simultaneously, it transmits secure, low-latency, high-definition video and data, immune to the signal interference and hacking vulnerabilities that plague wireless links.

　　Robust and Weather-Resistant Design

　　Built for the real world, the LH06 features a durable airframe capable of withstanding minor impacts. Its systems are designed to operate effectively in a range of environmental conditions, including light rain and winds that would ground many other small drones, ensuring your mission can continue when it matters most.

　　Core Advantages: The Operational Benefits of the LH06

　　Beyond its specifications, the LH06 delivers tangible advantages that transform operational capabilities.

　　Persistent Situational Awareness

　　The primary advantage is endurance. The LH06 turns a 20-minute drone window into a multi-hour operational asset. For security details at a public event, this means continuous crowd monitoring. For a police perimeter, it means unwavering overwatch without the need for officer rotation on a rooftop. This persistence allows command staff to maintain a constant, real-time understanding of a dynamic situation.

　　Enhanced Safety and Risk Mitigation

　　The LH06 enhances safety in two key ways. First, it acts as a force multiplier, allowing personnel to assess dangerous situations from a safe distance—be it a hazardous material incident, a fire, or an unstable structure. Second, the secure tethered data link ensures that sensitive video feeds remain private and cannot be intercepted, a critical consideration for law enforcement and government operations.

　　Significant Cost Efficiency and ROI

　　While the initial investment is meaningful, the LH06 delivers a strong return. It eliminates the recurring cost of multiple, expensive battery packs and the logistical overhead of managing their charging and cycling. Furthermore, by providing a persistent platform, it can often obviate the need for more expensive alternatives like manned aircraft or the construction of permanent camera towers.

　　Simplicity of Operation

　　Designed with the operator in mind, the LH06 features a straightforward control interface. Automated take-off and landing functions, combined with stable hover hold, reduce pilot workload and the potential for human error. This allows operators to focus on the mission objective—gathering intelligence—rather than on manually piloting the aircraft.

　　In-Depth Performance Testing and Validation

　　The capabilities of the LH06 are not just theoretical; they are proven through rigorous testing under controlled and real-world conditions.

　　Endurance and Stability Testing

　　Methodology: The system was deployed in an open field with a constant power supply. Flight operations were maintained for a full 6-hour duration while subjected to variable wind speeds generated by calibrated fans and natural conditions.

　　Results: The LH06 maintained a stable hover and consistent power draw throughout the test. The video feed remained uninterrupted, and the gimbal effectively compensated for wind gusts, keeping the camera view steady. The system successfully demonstrated its rated endurance without performance degradation.

　　Wind Tolerance and Station-Keeping Accuracy

　　Methodology: Using calibrated anemometers, the drone was flown at its maximum tether length in winds steadily increasing from 5 m/s to its maximum rated wind speed.

　　Results: The LH06 maintained its position within a 1-meter radius in winds up to 10 m/s. The video footage showed minimal vibration, with the gimbal successfully isolating the camera from the airframe's movements. This confirms its capability to provide a reliable platform in challenging weather.

　　Video Transmission Latency and Quality

　　Methodology: A high-resolution test pattern was filmed by the drone's camera and transmitted via the tether to the ground station. The latency was measured by comparing a timestamp on the pattern with the received feed. Quality was assessed by analyzing the received footage for artifacts, sharpness, and color fidelity.

　　Results: The tethered fiber-optic link demonstrated sub-millisecond latency, effectively real-time for operator control. The video quality was full high definition (1080p or better) with no compression artifacts or dropouts, ensuring that critical details remain visible.

　　Deployment Time and Acoustic Signature

　　Methodology: Multiple operators were timed from the moment the case was opened to the moment the drone achieved a stable hover at 50 feet.

　　Results: The average deployment time was under three minutes. The acoustic signature was measured at a distance of 50 meters and found to be significantly quieter than a traditional helicopter or larger multirotor, allowing for discreet operation in sensitive environments.

　　Operational Notes and Important Considerations

　　To ensure safe, effective, and long-lasting operation of your LH06 system, adherence to these guidelines is crucial.

　　Pre-Operation Checklist

　　Site Selection: Choose a launch site that is clear of overhead obstacles like power lines and tree branches. Ensure there is a clear safety radius around the ground station.

　　Weather Check: Confirm that current wind speeds and precipitation levels are within the specified operational limits outlined in the user manual. Do not operate in thunderstorms or heavy rain.

　　Hardware Inspection: Conduct a visual inspection of the drone, propellers, and tether. Look for any signs of wear, cracks, or fraying. Ensure all components are securely connected.

　　Power Verification: Confirm that the ground power source (generator or grid) is stable and within the required voltage and current specifications.

　　System Calibration: Perform any required pre-flight calibrations, such as compass calibration, in an area free from magnetic interference.

　　In-Flight Best Practices

　　Tether Awareness: The operator must continuously be aware of the tether's position relative to the ground and any obstacles. Avoid flying over people who are not directly involved in the operation.

　　Altitude Management: Use the minimum altitude necessary to achieve the mission objective. This conserves power and reduces the system's exposure to higher-altitude winds.

　　Payload Monitoring: Regularly check the live video feed and gimbal status to ensure the payload is functioning correctly and capturing the required data.

　　Maintenance and Post-Flight Protocol

　　Controlled Recovery: Always use the automated landing function or carefully pilot the drone back to the launch point. Manually reel in the tether smoothly as it descends.

　　Thorough Cleaning: After flight, especially in dusty or wet conditions, gently clean the drone, propellers, and tether. Ensure all components are completely dry before storage.

　　Battery Care (for backup/system): If the system includes backup batteries for the ground station, follow proper charging and storage protocols as specified in the manual to maximize their lifespan.

　　Secure Data Handling: Manage and store any recorded footage according to your organization's data security policies.

　　Conclusion: Power and Persistence, Redefined

　　The LH06 Tethered Drone System stands as a testament to the evolution of aerial technology, proving that immense capability can come in a small, portable package. It successfully bridges the gap between the short flight times of consumer-grade drones and the large footprint of industrial tethered systems. By delivering hours of secure, stable, and high-quality aerial observation, the LH06 empowers its users to see more, know more, and act with greater confidence.

　　For security teams, event planners, and industrial inspectors who require a rapid and reliable aerial perspective, the LH06 is the clear choice. It is not just a tool; it is a persistent partner in mission success.
