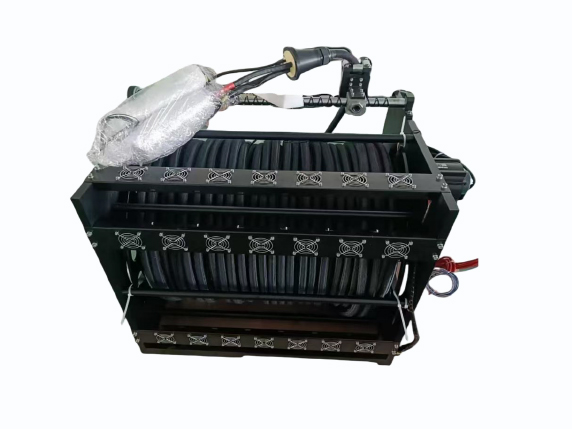

High Power Tethered Drone System

　　Cable output current optional

　　Cable output fiber optic optional

　　Passive wire release, automatic wire collection

　　Tethered Drone power system：

　　1. Advanced power conversion technology, with a typical efficiency of up to 96%, ensures stable and efficient power supply for drones during long-term flight.

　　2. The mooring box is equipped with intelligent automatic retraction and cable arrangement, and can also switch to manual mode by rotating the reel to retract and release cables. Configuring a 4.3-inch color screen with touch control is more user-friendly and convenient, with functions such as displaying box temperature, wire length, current and voltage, electricity consumption, torque adjustment, switching between Chinese and English, recording abnormal information, and a forced collection button. Relevant abnormalities will be promptly alerted through auxiliary reminders such as sound and light.

　　High-Power Tethered Drone System: Efficiency, Installation, Transport & Features

　　Introduction: Redefining Endurance in Aerial Operations

　　The High-Power Tethered Drone System represents a paradigm shift in capabilities for unmanned aerial vehicles. Engineered for missions where failure is not an option, this system delivers continuous, stable power to demanding drones, enabling 24/7 aerial presence for the most critical applications. It transcends the limitations of battery-powered flight, offering a robust solution for persistent surveillance, large-scale broadcasting, and advanced industrial inspection. This comprehensive guide delves into the core aspects of the system, highlighting its commitment to energy efficiency, providing a clear installation protocol, outlining crucial transport guidelines, and showcasing the innovative features that set it apart in the market.

　　Section 1: Energy Efficiency and Environmental Compliance Standards

　　In an era of increasing environmental consciousness and operational cost awareness, our High-Power Tethered Drone System is designed with efficiency at its core, adhering to rigorous international standards.

　　Advanced Power Conversion Technology

　　The system incorporates state-of-the-art switch-mode power supplies (SMPS) with power factor correction (PFC). This technology significantly reduces energy waste during the AC-to-DC conversion process, achieving peak efficiency ratings of over 95%. This means more of the drawn power is delivered directly to the drone, minimizing heat generation and lowering electricity costs, especially crucial during extended, multi-day operations. This high efficiency directly translates to a reduced carbon footprint and lower total cost of ownership.

　　Intelligent Power Management

　　Beyond hardware efficiency, the system features an intelligent power management algorithm. It dynamically adjusts the voltage and current output based on the drone's real-time power demands during hover, ascent, or high-wind conditions. This prevents energy waste from delivering excess power and ensures the system operates within its most efficient band. This smart regulation is a key differentiator, optimizing energy use far more effectively than a standard, unregulated power supply.

　　Adherence to Global Eco-Design and EMC Standards

　　Our systems are designed and certified to comply with global energy efficiency directives, such as the EU's ErP Directive, which sets benchmarks for energy-related products. Furthermore, the system conforms to strict Electromagnetic Compatibility (EMC) standards including CE and FCC. This ensures the system not only operates efficiently but also does not generate disruptive electromagnetic interference, protecting the integrity of the drone's communication and navigation systems and complying with regulatory requirements for market access worldwide.

　　Section 2: Step-by-Step System Installation Guide

　　A correct installation is fundamental to achieving the system's promised performance, safety, and reliability. Follow this structured guide for optimal setup.

　　Pre-Installation Site Assessment and Preparation

　　Before deployment, select a suitable site. The area should be stable, level, and clear of debris, with a minimum radius of 5 meters free from obstructions to allow for safe tether deployment. Ensure the location is compliant with local airspace regulations. Verify that you have access to a grounded AC power source that meets the voltage and current requirements specified in the system's manual. Inspect all components, including the ground power unit, tether cable, and drone interface, for any signs of damage incurred during transport.

　　Hardware Setup and Connection Sequence

　　Position the Ground Unit: Place the ground power unit on a stable surface. For permanent installations, consider anchoring it securely.

　　Unreel the Tether: Carefully unreel the tether cable, laying it out in a loose figure-eight pattern on the ground to prevent kinks and tangles.

　　Establish Power Connections: First, connect the tether cable to the dedicated high-power output port on the ground unit, ensuring a secure and locked connection. Next, connect the AC power cord from the ground unit to the mains supply. It is critical to connect the tether to the ground unit BEFORE connecting to mains power.

　　Connect to the Drone: Finally, connect the free end of the tether cable to the power input port on the drone. Listen for an audible click or check the connector indicator to confirm a positive lock.

　　Power-On and System Verification

　　Once all physical connections are secure, power on the ground unit. Observe the system's status indicators. A sequence of lights will typically show power-on, self-test completion, and stable output readiness. Only after the ground unit indicates a "Go" status should you initiate the drone's power-up sequence. Monitor the system for the first few minutes of operation to confirm stable voltage/current readings and the absence of any alarm indicators.

　　Section 3: Critical Transportation and Handling Considerations

　　The High-Power Tethered Drone System is a precision instrument. Proper handling during transport is essential to prevent damage and ensure it is ready for operation upon arrival.

　　Pre-Transport Preparation and Packaging

　　Always use the original, custom-fitted transport cases provided. Before packing, ensure the system is powered off and all cables are disconnected. Coil the tether cable neatly using the recommended over-under coiling technique to prevent internal wire stress and jacket deformation. Secure all latches and locks on the transport cases. If the original packaging is unavailable, use a suitably sized, rigid container with ample cushioning material (e.g., high-density foam) to protect the equipment from shocks and vibrations.

　　Environmental and Physical Protection During Transit

　　Protect the system from extreme environmental conditions during transport. Avoid leaving it in direct sunlight for prolonged periods or in unventilated vehicles where temperatures can soar. While the operational enclosures are rugged, avoid stacking heavy objects on top of the transport cases. Clearly label the cases with "Fragile," "This Side Up," and "Keep Dry" icons to inform handlers of the sensitive nature of the contents. For air freight, ensure that any integrated batteries (e.g., for backup systems) are declared and comply with IATA/UN 38.3 regulations.

　　Post-Transport Inspection and Verification

　　Upon reaching the destination, immediately inspect the external condition of the transport cases for any signs of impact or mishandling. After unpacking, conduct a thorough visual inspection of all components. Check for physical damage, loose connectors, or pin retraction. Before connecting to power for a full operational test, use a multimeter to check for any short circuits in the tether cable if possible. This proactive post-transport check can prevent potential damage to the drone or ground unit.

　　Section 4: Defining Product Highlights and Competitive Advantages

　　Our High-Power Tethered Drone System is packed with features designed to deliver unmatched performance and reliability in the most demanding scenarios.

　　Unmatched Power Output and Stability

　　The system is engineered to deliver a continuous, clean, and stable power output, capable of supporting the largest commercial drones and their heaviest payloads. This eliminates the risk of power-related flight termination during critical missions. Advanced voltage regulation technology compensates for voltage drop over long tether lengths, ensuring the drone receives consistent power regardless of altitude or cable extension.

　　Ruggedized Design for Demanding Environments

　　Built for the real world, the system boasts a high Ingress Protection (IP) rating, such as IP54, making it resistant to dust and water splashes. The operational temperature range is wide, allowing for deployment in diverse climates, from desert heat to cold high-altitude environments. The tether cable itself is reinforced with aramid fibers and features a robust, abrasion-resistant jacket, ensuring resilience against wear and tear.

　　Integrated Intelligence and Safety Protocols

　　Safety and intelligence are integral. The system features comprehensive built-in protection against over-voltage, over-current, and short-circuit conditions. Real-time system health monitoring provides operators with vital data on power consumption, internal temperature, and component status. Some models offer remote monitoring and control capabilities, allowing for system management from a safe distance. This combination of brute-force power and sophisticated intelligence makes it the most reliable and user-friendly system in its class.

　　Conclusion: The Strategic Choice for Uninterrupted Aerial Capability

　　The High-Power Tethered Drone System is more than just a product; it is a strategic platform that enables persistent aerial intelligence and operation. Its energy-efficient design reduces operational costs and environmental impact, while its straightforward installation and robust transportability ensure rapid, global deployment. Combined with its standout features of raw power, ruggedness, and integrated intelligence, this system is the definitive choice for defense, public safety, and industrial clients who cannot afford to look away.

　　To request a custom quote or a live demonstration tailored to your specific drone and mission profile, please contact our sales engineering team today.
